VERS-INSERT (08) is a LED fixture that offers prismatic or batwing insert options
VERS-INSERT (08) is a LED fixture that offers prismatic or batwing insert options
VERS-INSERT (08) DIMENSIONS
VERS-INSERT
CONFIGURE VERS-INSERT (08)
Calculate VERS-INSERT (08) Length

VERS-INSERT (08)

1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
NEC Closet Certified
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Declare Label Approved Lighting
Red List Approved
EPD Verified
Buy American Act Compliant SW, SW-HE, DW-HE
Build America, Buy America Compliant SW, SW-HE-DW-HE Only

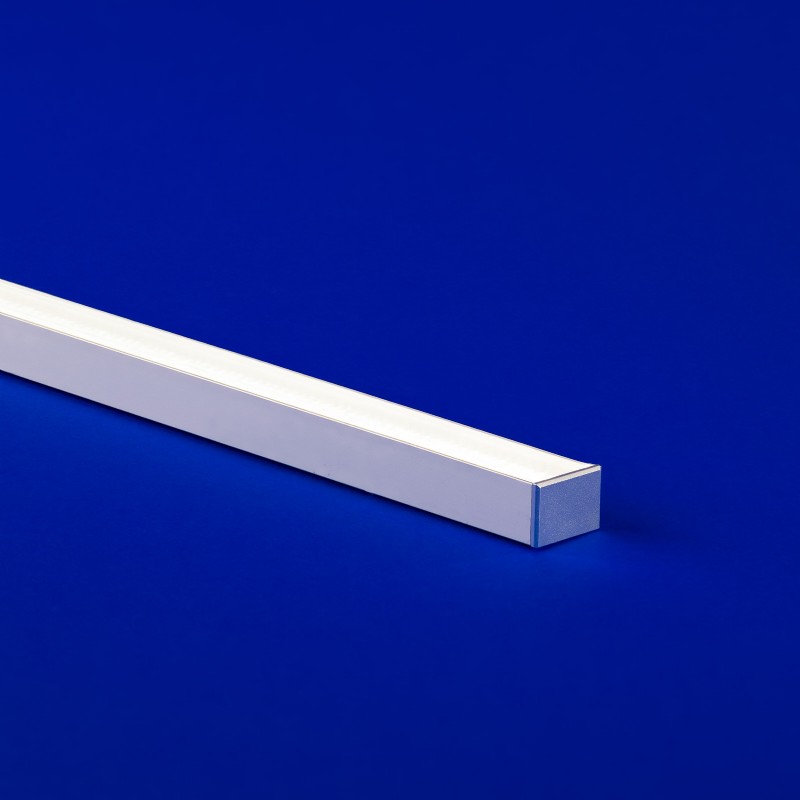

A VERSatile fixture that offers prismatic or batwing insert options

  •  A VERSatile fixture with customizable options to meet the specific needs of various applications
  • The batwing insert offers a wide beam angle without a hotspot in the middle
  • The prismatic insert offers glare control
  • Mounting options include a concealed or magnetic clip
  • With an internal White Optics coating, the fixture achieves greater lumen output
  • Durable anodized aluminum housings
  • Consult factory for field assembly options
CONFIGURE VERS-INSERT (08)
Calculate Length
More About VERS-INSERT (08)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 6.0, HE1.5, HE3.0, HE6.0, HE8.0, HE9.0
Finish Satin, Black, Bronze, White, Custom
Mounting Concealed Clip, Magnetic Clip, Magnet
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5 year
Photometric Performance Batwing, Glare Control
LED Light Engine Warm Dim, Static White High-Efficacy, Dynamic White High-Efficacy, RGBW High-Efficacy, Static White, Dynamic White, Static Color, RGB, RGBW
Length Fixture length min 12", max 98" notincluding end caps. Consult factoryfor lengths under 12".
Lenses Batwing, Glare Control
Lumens per Foot 282 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, FWC, EPD Verified Product
Compatible App SCENE Dongle
Connector Wire Bare Wire 24", Connector 24", Connector 6"
CRI 97-98 at 3000K
Environment Indoor/Outdoor
External Louver White Plastic, Black Plastic, Satin Anodized AluminumBlack Anodized Aluminum, White Powder Coated Aluminum, No Louver
Product Applications Surface Mount, Cove Lighting, Millwork Lighting
