VERS DROP LENS
VERS DROP LENS
VERS-DROP (10) DIMENSIONS
VERS-DROP (10)
CONFIGURE VERS-DROP (10)
Calculate VERS-DROP (10) Length

VERS-DROP (10)

Linear Fixtures - Surface
1-Bin, 1-Step
UL Listed LED lighting products
RoHS LED lighting product
JA8 Lighting
Title 24 Lighting
Certified Wildlife Lighting
WhiteOptics
5 Year Warranty
Declare Label Approved Lighting
Red List Approved
EPD Verified
Buy American Act Compliant SW, SW-HE, DW-HE
Build America, Buy America Compliant SW, SW-HE-DW-HE Only

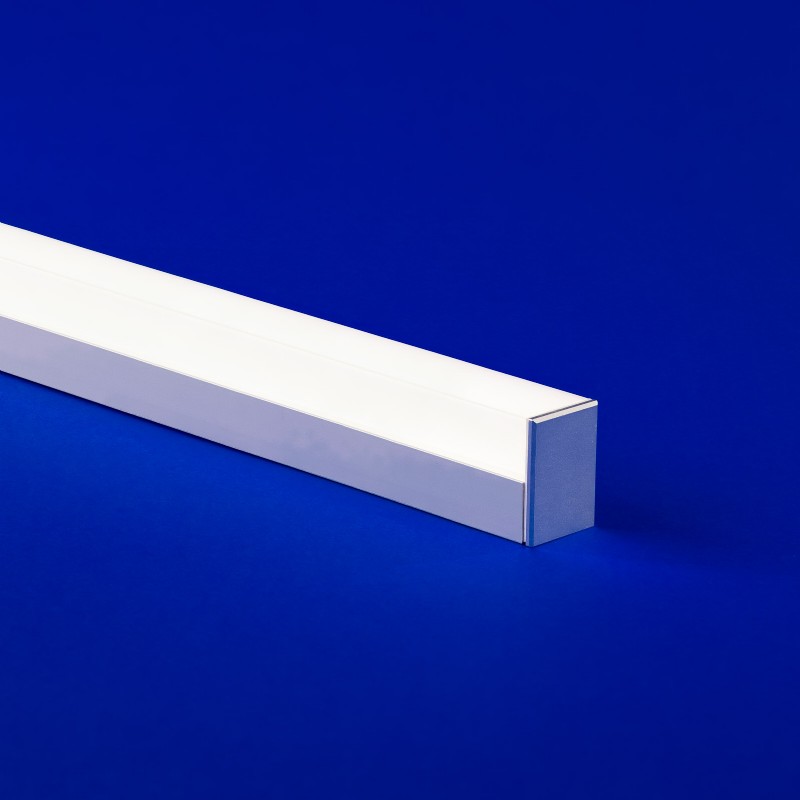

Provides illumination on three sides, adding a decorative detail and extra dimension.

  • Utilizes an extruded drop lens that sits proud of the fixture for maximum variations of LED sources
  • The high-quality lens provides a three sided diffuse illumination
  • Integrated metal endcaps combined with an extruded aluminum housing gives this fixture a polished modern look
  • Mounting options include concealed clip, magnet clips or T-Bar clips
  • White Optics, an internal coating that results in greater lumen output, comes standard in all VERS fixtures
  • Consult factory for field assembly options
CONFIGURE VERS-DROP (10)
Calculate Length
More About VERS-DROP (10)
Technical InformationVideosRelated Products

Technical Information

Watts per Foot 1.5, 3.0, 4.0, 5.0, 1.5HE, 3.0HE, 6.0HE, 9.0HE
Finish Satin, Black, Bronze, White, Custom
Mounting Concealed Clip, Magnet, 9/16" Flat TB-Grid, 15/16" Flat or Tegular TB-Grid, 9/16," Tegular TB-Grid
Rated Dry IP20, Damp IP54, Wet IP67
Warranty 5
Photometric Performance Diffused, Polar
LED Light Engine Static White, Static Color, RGB, RGBW, Dynamic White
Length Fixture length min 12”, max 98” not including end caps. Consult factory for lengths under 12".
Lenses Diffused, Polar
Lumens per Foot 253 at SW 4.0 w/f
CCTs 2000K, 2200K, 2400K, 2700K, 3000K, 3500K, 4000K
Certifications UL Listed, 1 Bin 1 Step, RoHS, JA8-2016, JA8-2019, Closet Rated Light Fixture Light Fixture NEC 410.2 and 410.16, Declare, EPD Verified Product, FWC
Compatible App SCENE Dongle
Connector Wire Bare Wire (Standard 36"), Connector 6", Connector 24"
CRI 98 at 3000K
Environment Interior
External Louver No Louver
