LED power supply for Warm Dim, 100-300W with WD dimming. Integrates with Lutron Athena Wireless Node and programmable via Athena app. Compatible with Lutron controls on a mesh network
LED power supply for Warm Dim, 100-300W with WD dimming. Integrates with Lutron Athena Wireless Node and programmable via Athena app. Compatible with Lutron controls on a mesh network
Voltage Drop Calculator

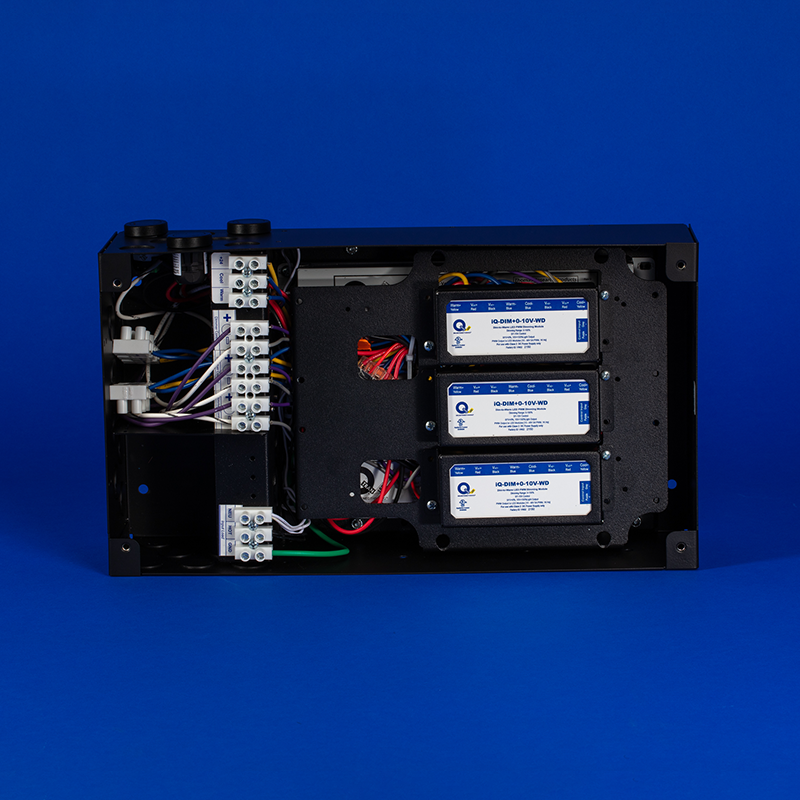

QTM-eLED+WD-AWN

24V DC LED Power Supply - 100W-300W
CSA Certified
RoHS LED lighting product
5 Year Warranty
Declare Label Approved Lighting
Red List Approved

100W-300W LED power supplies for warm dim applications

  • High-performance LED power supply designed for Warm Dim applications
  • Utilizes 100W constant voltage LED drivers and proprietary WD dimming module
  • Control provided by one 0-10V input, simulating incandescent light sources
  • Available in 100-300 watts
  • Can be surface or recess mounted for flexible installation
  • Incorporates a factory-installed Lutron Athena Wireless Node for seamless integration
  • Streamlines installation time with simple programming using Athena iOS or Android app
  • Connects to Lutron wall controls, keypads, and sensors over mesh network
Voltage Drop Calculator
More About QTM-eLED+WD-AWN
Technical InformationVideosRelated Products

Technical Information

Color White (Standard), Black powder coat finish
Certifications CSA, RoHS
Dimming Performance DIM 0.1%
Dimming Protocol Lutron, 0-10V
Primary Voltage Universal
Secondary Voltage 24VDC
Warranty 5 year
Wattage 100W, 200W, 300W
