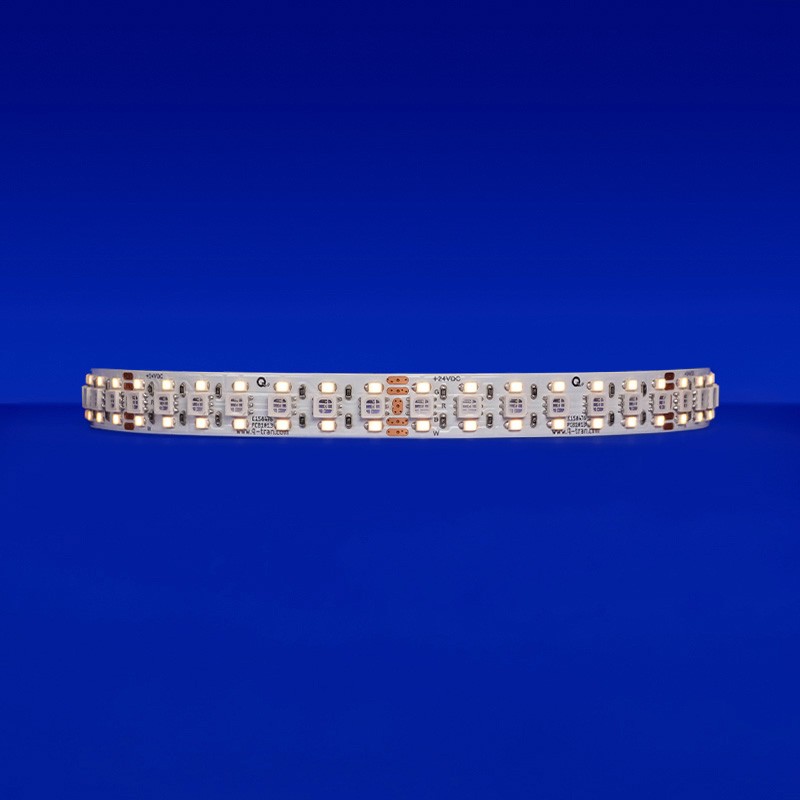

RGBW-HE24/8.0
LED Strips - RGBW High Efficacy
285 lm/ft @ 3000k, 21 diodes per 2" cut point.
- 24-volt, 8.0 watts/foot linear LED strip
- Delivers enhanced color depth and brightness for dynamic lighting applications
- Features 21 diodes per 2” cut point:
- 7 RGB diodes for full-spectrum color control
- 14 static white diodes for brilliant white output
- Provides vivid color mixing and high-intensity white light
- Dry-rated only, suitable for indoor applications
- Thermal Specifications:
- Ambient operating temperature: -4°F to 90°F
- Installation temperature: 50°F to 100°F
- Storage temperature: -4°F to 176°F
- Calculated L70 lifespan: 51,000 hours
- Combine with an aluminum LED extrusion to create a custom linear fixture
More About
RGBW-HE24/8.0
Technical Information
| Watts per Foot | 8 |
| Rated | Dry IP20 |
| LED Type | RGBW High Efficacy |
| Cut Length | 2" increments |
| LEDs per Cut Length | 21 diodes |
| Environment | Indoor |
| CCTs | RGBW 27, RGBW 30, RGBW 35, RGBW 40 |
| Certifications | UL Listed, RoHS, CE, UKCA, Declare |
| Connector Wire | Bare Wire (Standard 24"), Close End (No feed), Connector 6", Connector 24" |
| CRI | 97 at 3000K |
| Warranty | 5 year |
