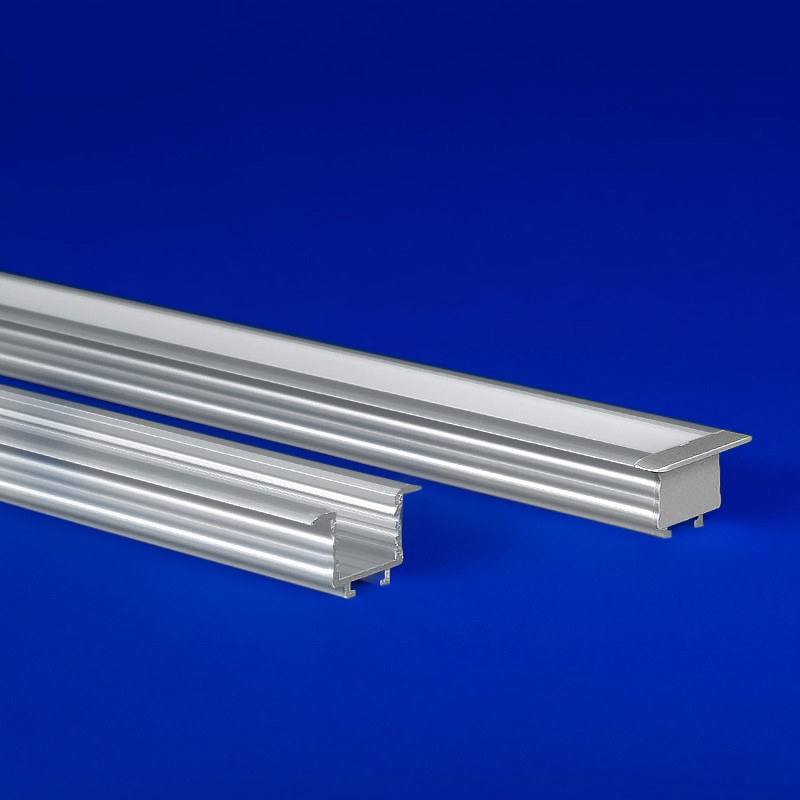

Recessed EMBD aluminum LED profile with a flanged design, ideal for wall and millwork integration.
Recessed EMBD aluminum LED profile with a flanged design, ideal for wall and millwork integration.
EMBD Dimensions

EMBD

Spec Sheets

RoHS LED lighting product
Recessable
Declare Label Approved Lighting
Red List Free Approved Lighting
Red List Approved
10 Year Warranty

Flanged LED profile for recessing in walls and millwork

  • Flanged LED profile for clean recessed installations
  • Designed for integration into walls, millwork, and other architectural details
  • Lens Options:
    • Standard lens
    • Optical lenses for enhanced beam control
  • Beam pattern flexibility when paired with the adjustable tray,  EMBD can produce multiple beam angles:  12°, 14°, 20°, 30°, 45°, 60°
  • Mounting Options:

    • Recessed spring clips for both new construction and remodel applications

    • Magnetic mounting clip option for easy installation

Spec Sheets

More About EMBD
Technical InformationVideosRelated Products

Technical Information

Finish Satin, Custom
Mounting Spring Clip, Magnet Clip
Warranty 10 year
Certifications RoHS, Declare, Declare Red List Free
Dimensions 1.0" x 0.41"
Environment Indoor/Outdoor
Length 1" increments from 1" - 98.43"Tolerance +0.0"/-0.5"
Lenses Frosted, Polar, Diffused, Optical
Material Aluminum Housing
Product Applications Surface Mount
