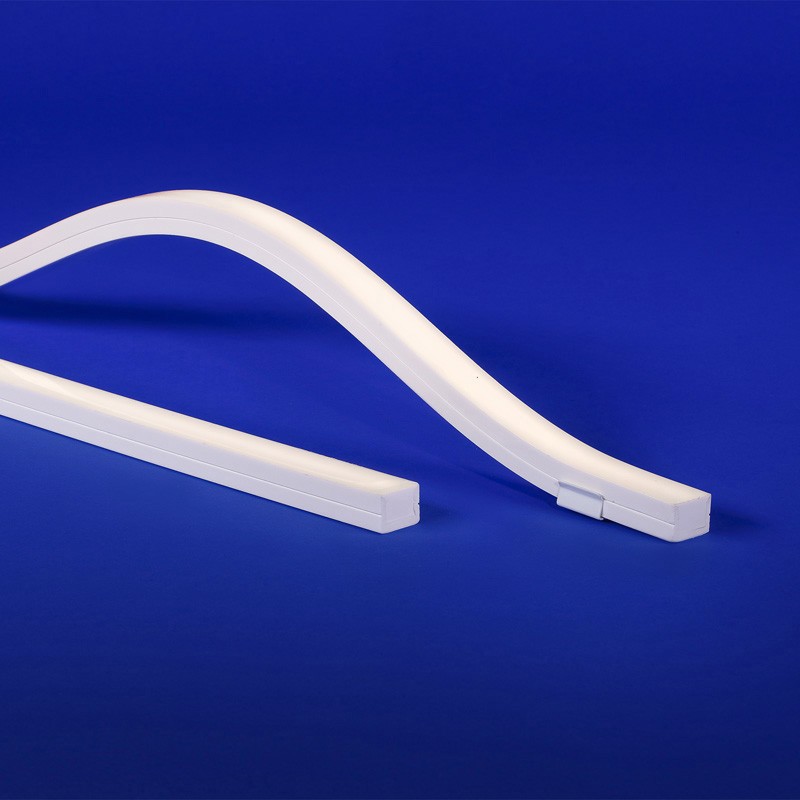

Q-CAP BOXA
Flexible Encapsulated LED Fixtures
Fully encapsulated flexible fixture with up/down bending capabilities, IK10 impact rated
- Flexible encapsulated LED fixture with a 6" bend radius
- Features Up/down bend capabilities
- Rated for both interior and exterior use, offering versatility for various environments
- Choose from six different mounting options
- Available in a seamless configuration for a continuous line of light
- Utilize clear endcaps for continuous runs
- QTL Red & Amber LED products are Florida Fish and Wildlife Conservation Commission certified, making them safe for turtles and other wildlife
-
Specify a 4' piece of field cuttable Q-CAP for precise run length adjustments on-site, enabling orders before construction is complete and allowing for jobsite modifications (dry applications only)
-
IK10 impact rated
Technical Information
| Rated | Dry IP20, Wet IP67, Submersible IP68, IK10 Impact Rated |
| End Caps | Clear, White |
| Seamless | Available in a seamless option |
| Mounting | White Snug Clip, Rigid Lock Channel, Magnetic Clip, Side Graze Channel, PVC Mount Clip, Low Profile PVC Mount Clip, PVC Channel, Low Profile PVC Channel, 16' BENDIT Up/Down Stainless Steel Channel, 32' BENDIT Up/Down Stainless Steel Channel, 16' BENDIT Up/Down White Stainless Channel, 32' BENDIT Up/Down White Stainless Channel |
| Dimensions | 1.14" x 0.83" |
| Warranty | 5 year |
| Photometric Performance | Encapsulated Clear, Encapsulated Translucent |
| Environment | Indoor/Outdoor |
| LED Light Engine | Static White, Static White High Efficacy, Dynamic White (Tunable White), Dynamic White High Efficacy (Tunable White), Warm Dim, Static Color, RGB, RGBW, RGBW High Efficacy |
| Length | Fixture length min 12", max 191". Consult factory for lengths under 12". SW: Available in 1" increments.SW-HE: Available in 2" increments. |
| Lenses | Encapsulated Clear, Encapsulated Translucent |
| Bend Orientation | Up/Down Bend |
| Bend Radius | 6" bend radius |
| CCTs | 2200K,2400K, 2700K, 3000K, 3500K, 4000K, 2400K-3000K, 2700K-4000K |
| Certifications | UL Listed, RoHS, Declare, EPD Verified Product |
| Compatible App | SCENE Dongle |
| Connector Wire | Bare Wire (Standard 24"), Barrel, Connector 6", Connector 24" |
| CRI | 96-98 at 3000K |
