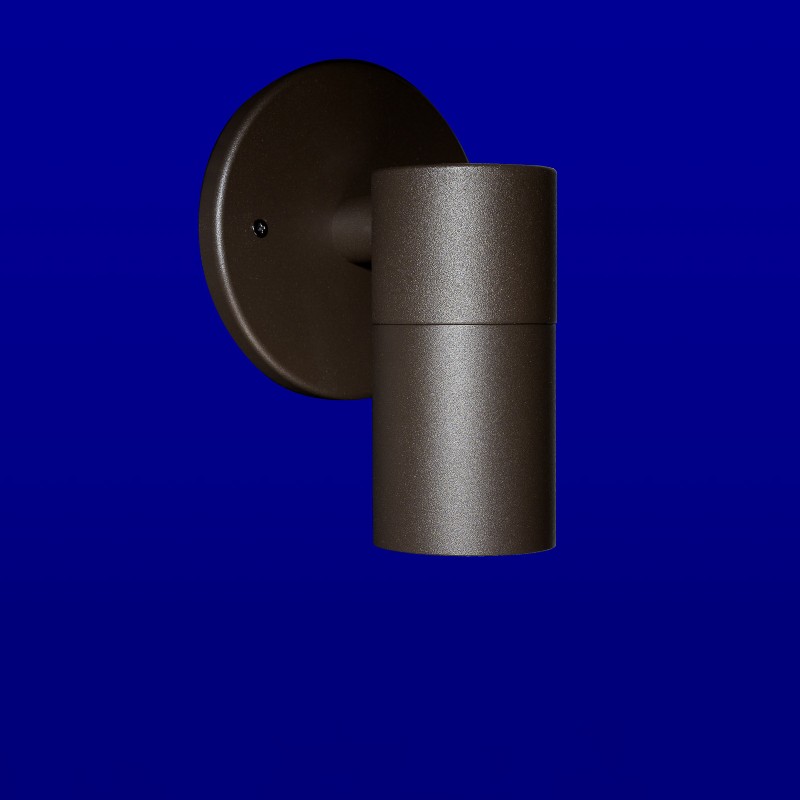

12V MR16 35W, 8W Outdoor LED Wall Mount
12V MR16 35W, 8W Outdoor LED Wall Mount
Individual_Category_Hover_Images_WA-5

WA-5

12V MR16 35W, 8W Outdoor LED Wall Mount
UL Listed LED lighting products
5 Year Warranty

12V MR16 35W, 8W Outdoor LED Wall Mount, 1/2" Regressed Cap

  • Machined 6061-T6 copper-free aluminum. Aluminum components are black, then a polyester powder coat finish is applied.
  • Remote transformer required.
  • Stainless steel hardware.
  • 10” 18ga. Teflon coated wire leads.
  • Three mounting plate options.
  • Clear tempered glass lens, glued in.
  • Cap Style: 1/2" regressed cap.
  • High-temperature silicone O-ring seal used to seal the cap against the body.
  • Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
  • Maximum Wattage: 35 watt, 8 watt LED.
  • Input Voltage: 12V (remote transformer required)
  • Socket: GU5.3 Bi Pin Porcelain
  • Environment: Wet Listed
  • Specification-grade wet-location luminaire for wall mount applications.

Technical Information

Input Voltage 12V (remote transformer required)
Maximum Wattage 35 watt, 8 watt LED
Material Aluminum
Lens Clear tempered glass lens
Environment Wet Listed
Certifications UL
Mounting Plate Options 4/0 Round Mounting Plate, 4/0 Square Mounting Plate, 3/0 Round Mounting Plage
Finish Options Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White
Socket GU5.3 Bi Pin Porcelain
Dimensions 2 3/8” dia. x 7 5/8” overall
Cap Style 1/2" Regressed Cap
Warranty 5 Year
