WA-1

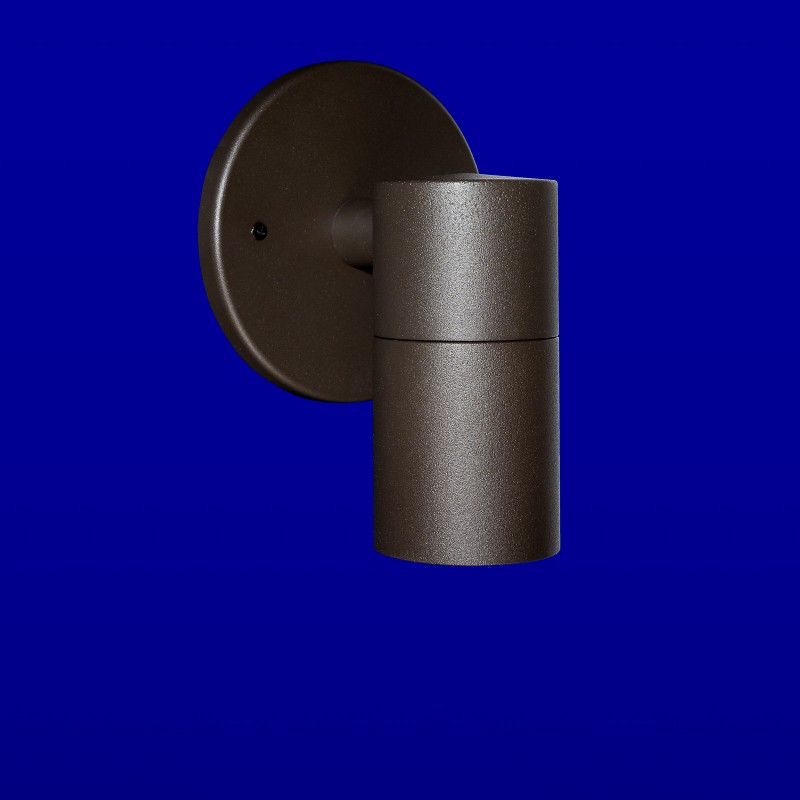

12V MR16 35W, 8W Outdoor LED Wall Mount

12V MR16 35W, 8W Outdoor LED Wall Mount
- Machined 6061-T6 copper-free aluminum. Aluminum components are black, then a polyester powder coat finish is applied.
- Remote transformer required.
- Stainless steel hardware.
- 10” 18ga. Teflon coated wire leads.
- Three mounting plate options.
- Clear tempered glass lens, glued in.
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 8 watt LED.
- Input Voltage: 12V (remote transformer required)
- Socket: GU5.3 Bi Pin Porcelain
- Environment: Wet Listed
- Specification-grade wet-location luminaire for wall mount applications.
More About
WA-1
Technical Information
Input Voltage | 12V (remote transformer required) |
Maximum Wattage | 35 watt, 8 watt LED |
Material | Aluminum |
Lens | Clear tempered glass lens |
Environment | Wet Listed |
Certifications | UL |
Mounting Plate Options | 4/0 Round Mounting Plate, 4/0 Square Mounting Plate, 3/0 Round Mounting Plage |
Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
Socket | GU5.3 Bi Pin Porcelain |
Dimensions | 2 3/8” dia. x 4 3/4” overall |
Warranty | 5 Year |
