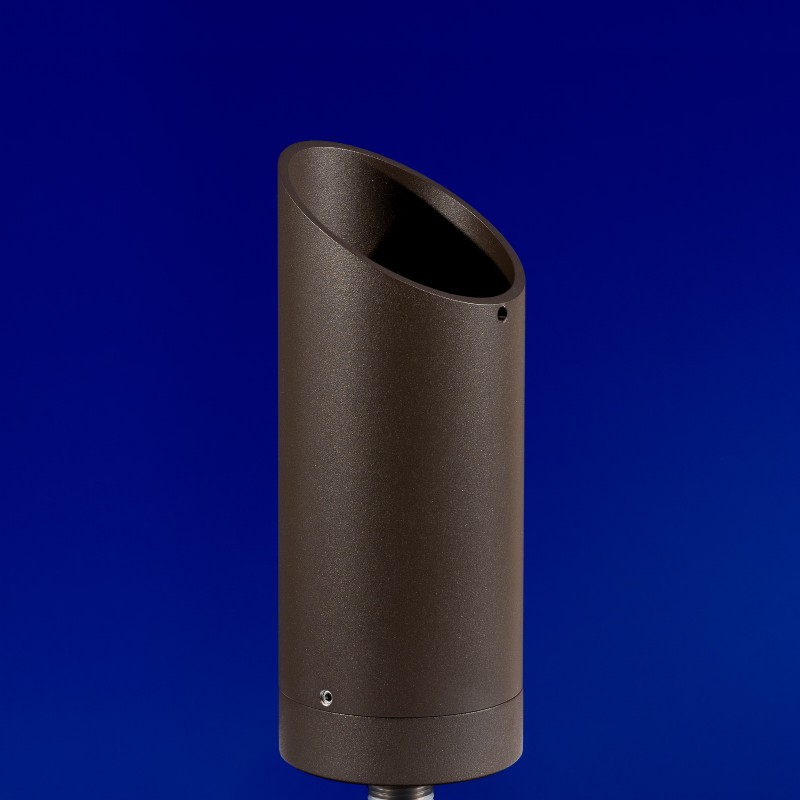

UL-30
120V AC PAR20 35W, 11W LED Up Light
120V AC PAR20 35W, 11W LED Up Light, 30° Angled Cap
- 6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
- Stainless steel hardware.
- 10” 18ga. Teflon coated wire leads.
- Tempered clear glass lens.
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 11 watt LED
- Input Voltage: 120V AC
- Socket: Medium base ceramic
- Environment: Wet Listed
- Specification-grade landscape lighting, wet-location luminaire for up lighting or downlighting applications.
- Can be utilized for surface mounted installations
More About
UL-30
Technical Information
| Input Voltage | 120V AC |
| Maximum Wattage | 35 watt, 11 Watt LED |
| Material | 6061 Marine Grade Aluminum |
| Lens | Clear Tempered Glass |
| Environment | Wet Listed |
| Certifications | UL Listed |
| Wiring | 10” 18ga. Teflon coated wire leads. |
| Socket | Medium Base Ceramic |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Dimensions | 3" x 7 1/4" |
| Warranty | 5 Year |
