12V MR16 20W, 8W Outdoor LED Core Drill Step Light
UL Listed LED lighting products
5 Year Warranty

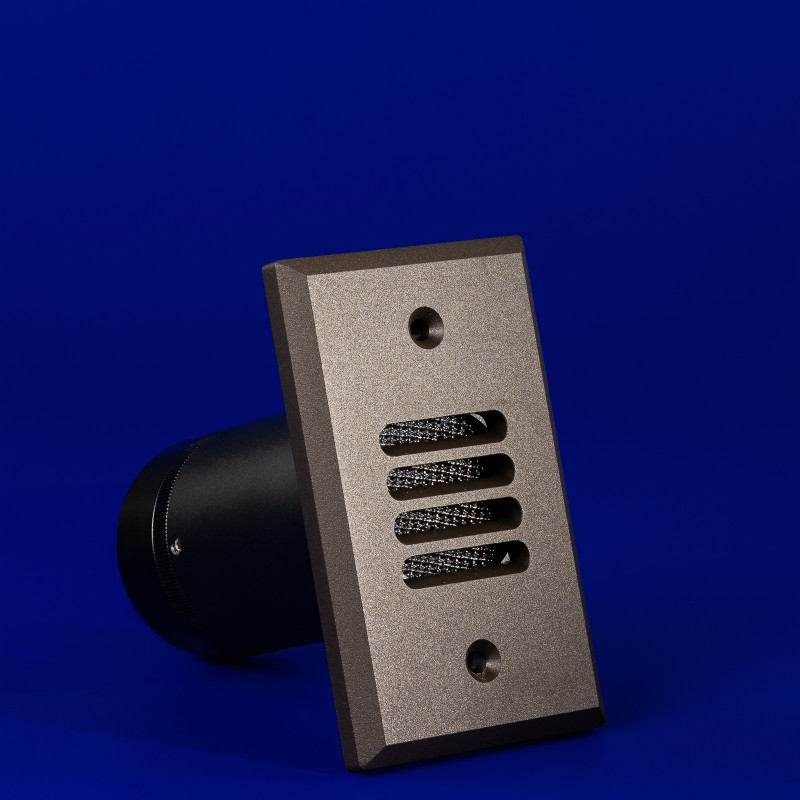

12V MR16 20W, 8W Outdoor LED Core Drill Step Light

  • Aluminum, available in eight standard TGIC powder coat finishes.
  • Stainless steel hardware.
  • Tempered crystalline spread lens.
  • 6 feet of 16/2 low voltage cable supplied.
  • Core drill design for masonry (2 1/2” hole required).
  • High-temperature silicone O-ring seal used to seal the cap against the body.
  • Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
  • Maximum Wattage: 20 watt, 8 watt LED
  • Input Voltage: 12V (remote transformer required)
  • Socket: GU5.3 Bi Pin Porcelain
  • Environment: Wet Listed
  • Specification-grade landscape lighting, wet-location  luminaire for step lighting or path lighting applications.

Technical Information

Input Voltage 12V (remote transformer required)
Maximum Wattage 20 watt, 8 watt LED
Material Options Aluminum
Lens Tempered crystalline spread lens
Environment Wet Listed
Certifications UL
Wiring 6 feet of 16/2 low voltage cable supplied
Socket GU5.3 Bi Pin Porcelain
Finish Options Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White
Dimensions 3” x 5”x 3/8” thick faceplate, 6” overall length
Warranty 5 Year
