ST-11

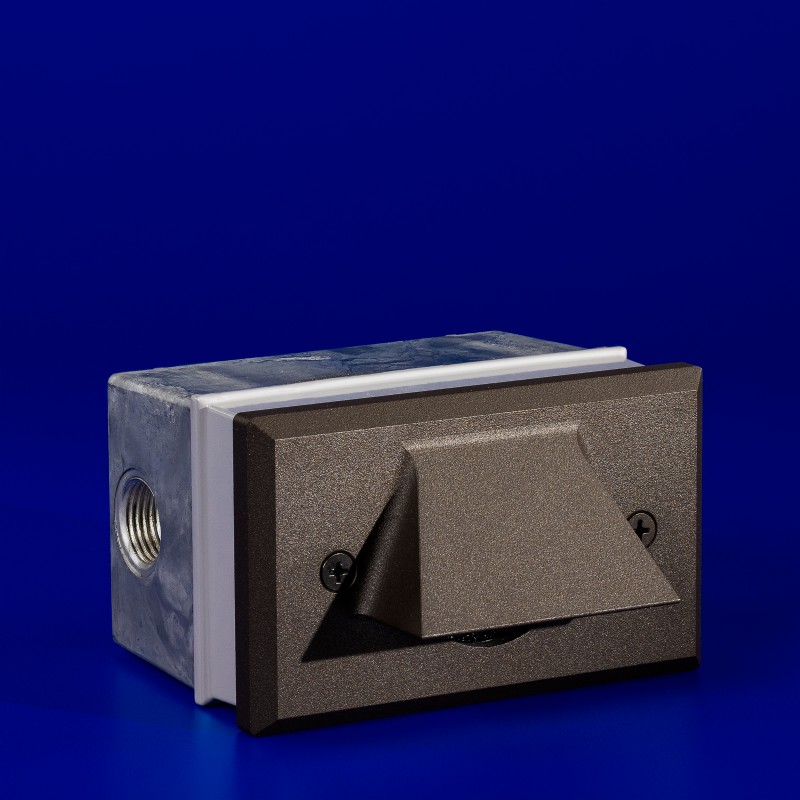

12V MR16 20W, 8W Outdoor LED Box Mount Step Light
12V MR16 20W, 8W Outdoor LED Box Mount Step Light
- Aluminum, available in eight standard TGIC powder coat finishes.
- Stainless steel hardware.
- Tempered linear spread lens.
- Single gang junction box design.
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 20 watt, 8 watt LED
- Input Voltage: 12V (remote transformer required)
- Socket: GU5.3 Bi Pin Porcelain
- Environment: Wet Listed
- Specification-grade landscape lighting, wet-location luminaire for step lighting or path lighting applications.
More About
ST-11
Technical Information
| Input Voltage | 12V (remote transformer required) |
| Maximum Wattage | 20 watt, 8 watt LED |
| Material Options | Aluminum |
| Lens | Tempered linear spread len |
| Environment | Wet Listed |
| Certifications | UL |
| Wiring | 6 feet of 16/2 low voltage cable supplied |
| Socket | GU5.3 Bi Pin Porcelain |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Dimensions | 3” x 5” x 1 1/2” (faceplate) |
| Warranty | 5 Year |
