RL-5

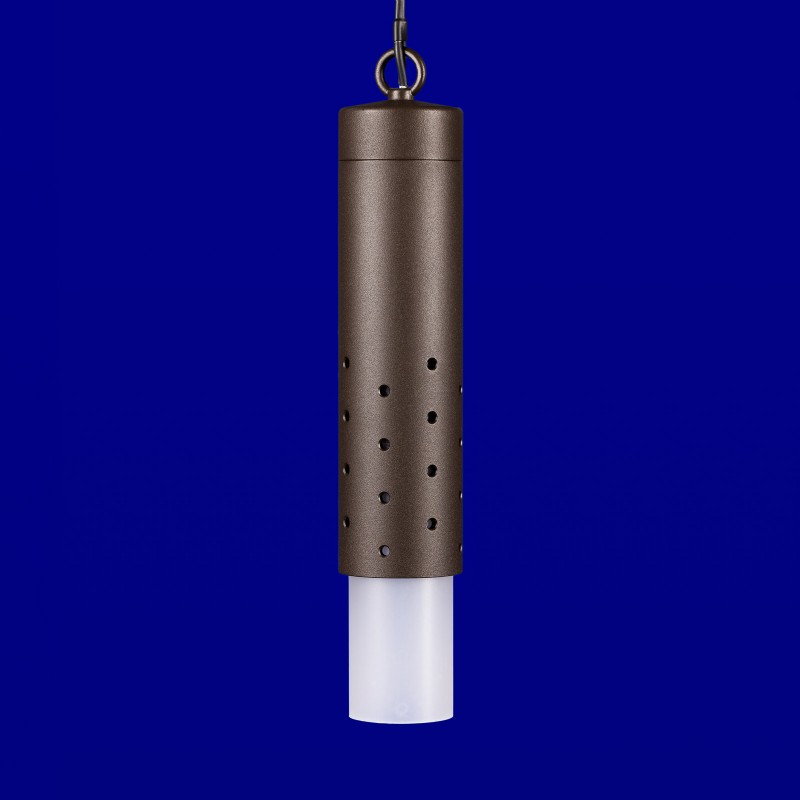

12V MR16 35W, 8W Outdoor LED Pendant Light
12V MR16 35W, 8W Outdoor LED Pendant Light
- 6061 Marine Grade Aluminum. Aluminum components are black, then a polyester powder coat finish is applied.
- Remote transformer required.
- SS Cable and lead wire options.
- Stainless steel hardware.
- 1” brass loop for mounting. Hanging hook included.
- 12” 18 ga. shrink tube covered, black wire leads.
- Clear tempered glass lens, glued in.
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 8 watt LED
- Input Voltage: 12V (remote transformer required)
- Socket: GU5.3 Bi Pin Porcelain
- Environment: Wet Listed
- Specification-grade landscape lighting, wet-location luminaire for down lighting applications.
- Can be utilized for pergola or tree-mounted installations
More About
RL-5
Technical Information
| Input Voltage | 12V (remote transformer required) |
| Maximum Wattage | 35 watt, 8 watt LED |
| Material | 6061 Marine Grade Aluminum |
| Lens | Clear tempered glass lens |
| Environment | Wet Listed |
| Certifications | UL |
| SS Cable Options | No cable, 5' SS Cable, 10' SS Cable, 15' SS Cable, 20' SS Cable, 25' SS Cable, 30' SS Cable |
| 18/2 Wire Options | No Wire, 5' Wire, 10' Wire, 15' Wire, 20' Wire, 25' Wire, 30' Wire |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Socket | GU5.3 Bi Pin Porcelain |
| Dimensions | 2 3/8” dia. x 11” overall |
| Warranty | 5 Year |
