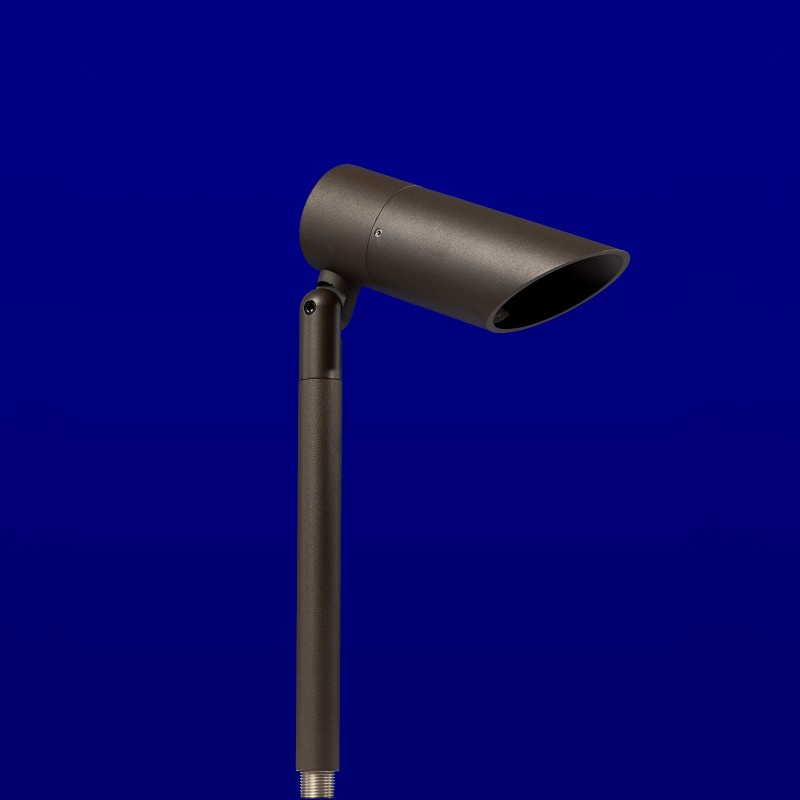

12V MR16 9W Outdoor LED Staff Light
UL Listed LED lighting products
5 Year Warranty

12V MR16 9W Outdoor LED Staff Light

  • 6061 Marine Grade Aluminum.  Aluminum components are anodized, then a polyester powder coat finish is applied.
  • Remote transformer required.
  • Stainless steel hardware.
  • 6 feet of 18/2 low voltage cable supplied.
  • Three cap styles from which to choose.
  • Stems lengths of 9”- 36” available.
  • Adjustable or fixed mounting. (see MT-1 and MT-2)
  • Clear tempered glass lens, glued in.
  • High-temperature silicone O-ring seals are used to seal the cap against the body.
  • Molded silicone wire pass-thru is attached to socket wire prevents wicking and water leaking into the lamp compartment.
  • Maximum Wattage: 9 watt LED (12W Startup Draw)
  • Input Voltage: 12V (remote transformer required)
  • Socket: GU5.3 Bi Pin Porcelain
  • Specification-grade landscape lighting, wet-location luminaire for path or garden lighting applications.

Technical Information

Input Voltage 12V (remote transformer required)
Maximum Wattage 9 watt LED (12W Startup Draw)
Material 6061 Marine Grade Aluminum
Lens 15°, 30°, 45°, 60°
Cap 45° Flush, 45° Regress, 45° Angled
Certifications UL
Wiring 6 feet of 18/2 low voltage cable supplied
Socket GU5.3 Bi Pin Porcelain
Finish Options Beige, Black, Black Texture, Bronze, Bronze Texture, Silver, White, Dark Bronze, Natural
Dimensions 2 1/8" dia. top, 7 1/4" dia. long
Stem Length Options 9" 12" 18" 24" 30" 36"
CCT 2700K, 3000K, 4000K
Warranty 5 Year Aluminum
