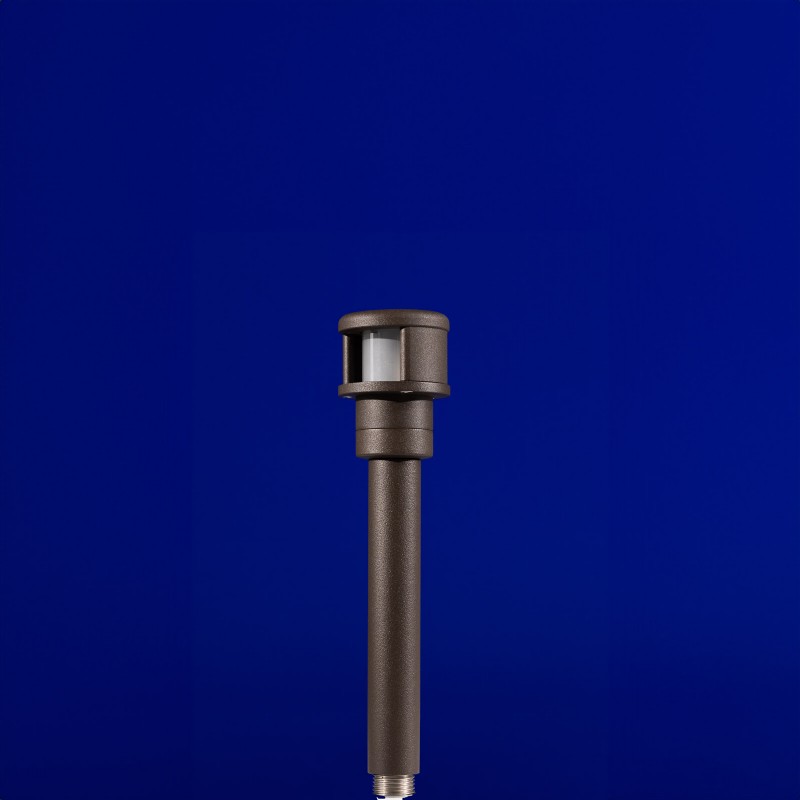

PL-5
12V GY6.35/G4 35W, 4W LED Path Light

12V GY6.35/G4 35W, 4W LED Path Light
- 6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
- Remote transformer required.
- Stainless steel hardware.
- 6 feet of 18/2 low voltage cable supplied.
- Stems lengths of 3” - 18” available. Mount not included.
- Frosted or clear tempered glass lens, glued in.
- High-temperature silicone O-ring seals are used to seal the cap against the body.
- Molded silicone wire pass-thru is attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 4 watt LED (order separately)
- Input Voltage: 12V (remote transformer required)
- Environment: Wet Listed
- Socket: GY 6.35 Bi Pin Porcelain
- Specification-grade landscape lighting, wet-location luminaire for path or garden lighting applications.
More About
PL-5
Technical Information
Input Voltage | 12V (remote transformer required) |
Maximum Wattage | 35 watt, 4 Watt LED (order separately) |
Material | 6061 Marine Grade Aluminum |
Lens Options | Frosted, Clear |
Environment | Wet Listed |
Certifications | UL |
Wiring | 6 feet of 18/2 low voltage cable supplied |
Socket | GY 6.35 Bi-Pin Porcelain |
Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
Dimensions | 2 1/8" dia. top, 1" dia. stem |
Opening Size | 90°, 120° |
Stem Length Options | None 3" 6" 9" 12" 18" |
Warranty | 5 Year |
