PL-27

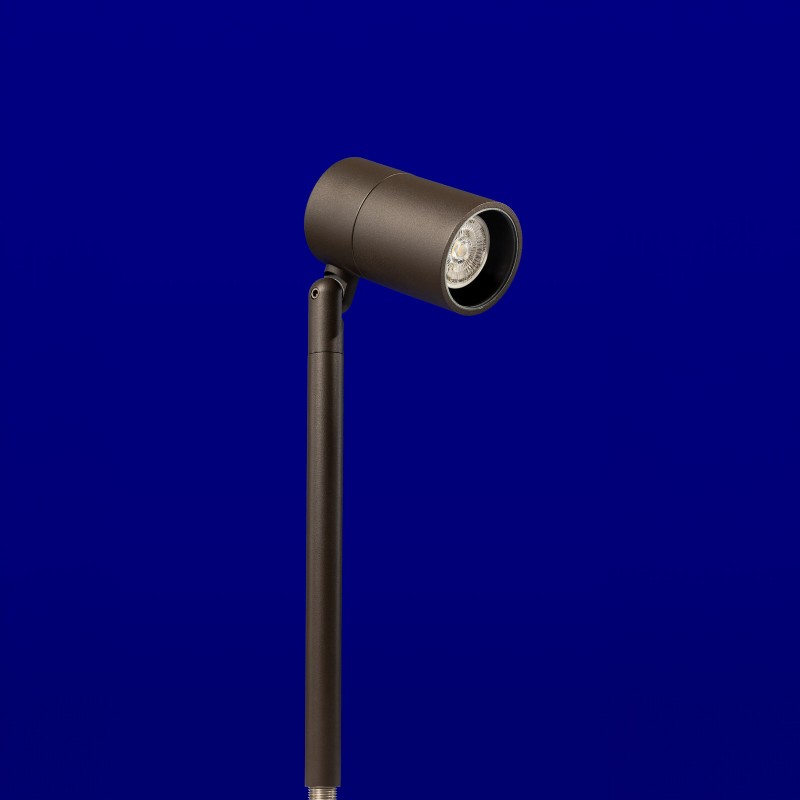

120V GU10 35W, 9W Outdoor LED Staff Light

120V GU10 35W, 9W Outdoor LED Staff Light
- 6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
- Stainless steel hardware.
- Conduit mounting stake included.
- Three cap styles from which to choose.
- Stems lengths of 12”- 48” available.
- Clear tempered glass lens, glued in.
- High-temperature silicone O-ring seals are used to seal the cap against the body.
- Molded silicone wire pass-thru is attached to socket wire prevents wicking and water leaking into the lamp compartment.
- Maximum Wattage: 35 watt, 9 watt LED.
- Input Voltage: 120V
- Socket: GU 10
- Environment: Wet Listed
- Specification-grade landscape lighting, wet-location luminaire for path or garden lighting applications.
More About
PL-27
Technical Information
Input Voltage | 120V |
Maximum Wattage | 35 watt, 9 watt LED |
Material Options | 6061 Marine Grade Aluminum |
Lens Options | Clear Tempered Glass |
Environment | Wet Listed |
Certifications | UL |
Socket | GU 10 |
Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
Dimensions | 3" dia. x 6 1/4" long |
Cap Options | Flush, Regress, 45° |
Mountings | Conduit Stake (included), MT-25, MT-28, MT-44 |
Stem Length Options | 12" 18" 24" 30" 36" 42" 48" |
Warranty | 5 Year |
