MR16 / GU5.3

12V EmeryAllen MR16 RETROFIT LAMP

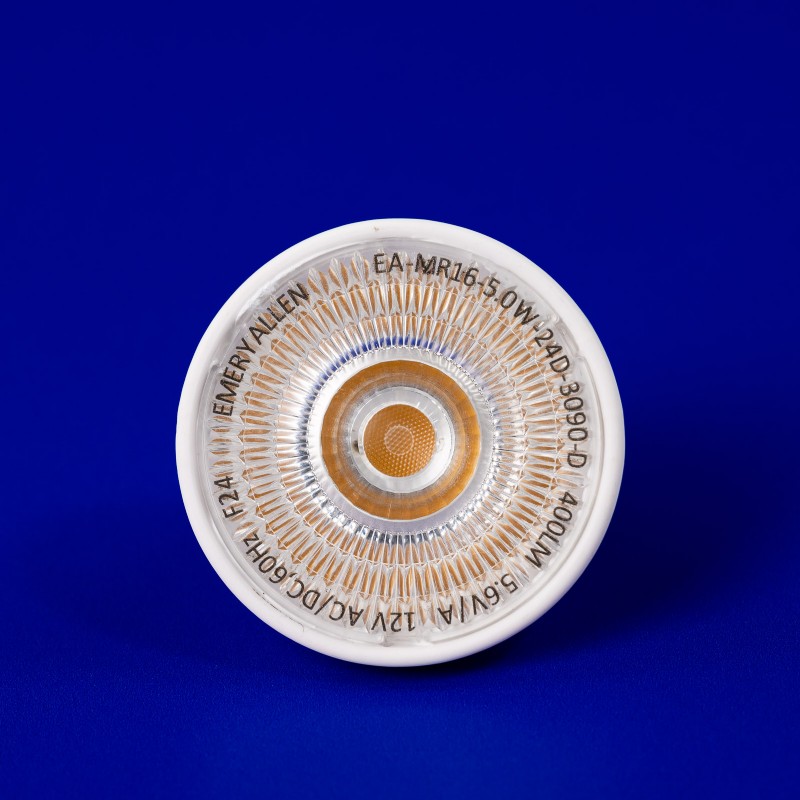

12V EmeryAllen MR16 Retrofit Lamp

12V EmeryAllen MR16 retrofit lamp replaces halogen MR16 bulbs with lower energy use.
Works with most 12V GU5.3 MR16 fixtures.
Multiple Wattage Options:
- 1.0W – Replaces 12V, 10W halogen (85-130 lumens).
- 3.0W – Replaces 12V, 20W halogen (220-330 lumens).
- 5.0W – Replaces 12V, 35W halogen (450-500 lumens).
- 7.0W – Replaces 12V, 50W halogen (540-640 lumens).
36,000-hour lifespan, 10x longer than standard bulbs.
Ideal for track, pendant, ceiling, and outdoor lighting.
Color Options:
- 2700K, 3000K – Available for all models.
- 4000K, 5700K – Available for 5.0W and 7.0W (60° and 120° spreads).
Available in 2700K, 3000K, and 5700K.
15°, 24°, 36°, 60°, and 120° beam spreads available.

Request Info Find a Rep

Base Type	MR16 / GU5.3
Material	Ceramic + PC
Input Voltage	12V AC
Wattage	1.0, 3.0, 5.0, 7.0
Volt-Amperes (VA)	1.0W – 1.196W, 3.0W – 3.396W, 5.0W – 5.556W, 7.0W – 7.320W
CRI	92
Brightness	100 – 523 Lumens
CCT	2700K, 3000K, 4000K, 5700K
R9	53
R13	95
Beam Spread Options	15°, 24°, 36°, 60°, 120°
