Q-MINI J5
Q-MINI-J5
Spec Sheets

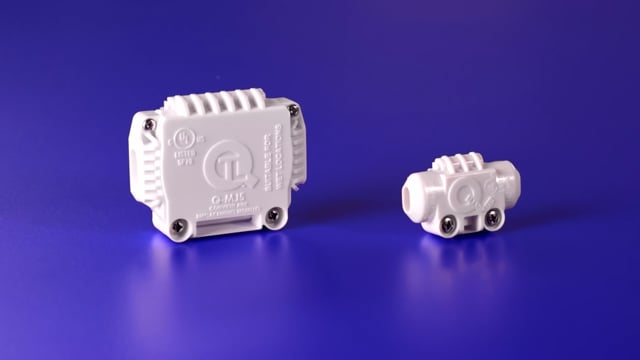

UL Listed, water resistant mini junction box
- Water resistant junction box allows for splicing QTL LED lead wires
- Used to splice up to 5 wires for a continuous run to power supply
- Can be mounted with VHB tape or standard mounting hardware
- Indoor/Outdoor Use
- UL listed
- Silicone package offered as an add-on (sold separately)
- For submersible installations and an option for third party wires (third party wires can be used with QTL wire.)
Spec Sheets
More About
Q-MINI-J5
Technical Information
| Environment | Indoor (Dry), Outdoor (Wet) |
| Accessories | Install Kits |
| Certifications | UL Listed |

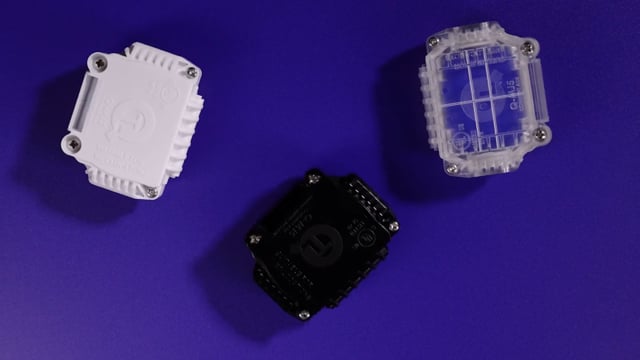

| Color Options | White, Black, Clear |
| Overall Dimensions | 2.80" x 2.27" |
| Supplied Parts In Each Pack | PH PAN #4X.188" SS Tap Screws (4x), Nylon Wire Strain Relief (2x), Low Profile 6-32 SS Nuts (2x), PH PAN 6-32X1/2" SS Screws (2x), PH PAN #4X3/8" SS Tap Screws (2x), PH PAN #6X1-1/4" SS Wood Screws (2x), 12-22 Gauge Terminal Block (1x), 3m Adhesive Tape (1x), 24-22 AWG Ferrules: Crimp onto 24 AWG. Wires (10x), Wire Gasket Sets (2x) |
| Install Options | Indoor (Free Float), Indoor/Outdoor (3M VHB-Included), Indoor/Outdoor (Wood Screw - Included) |
