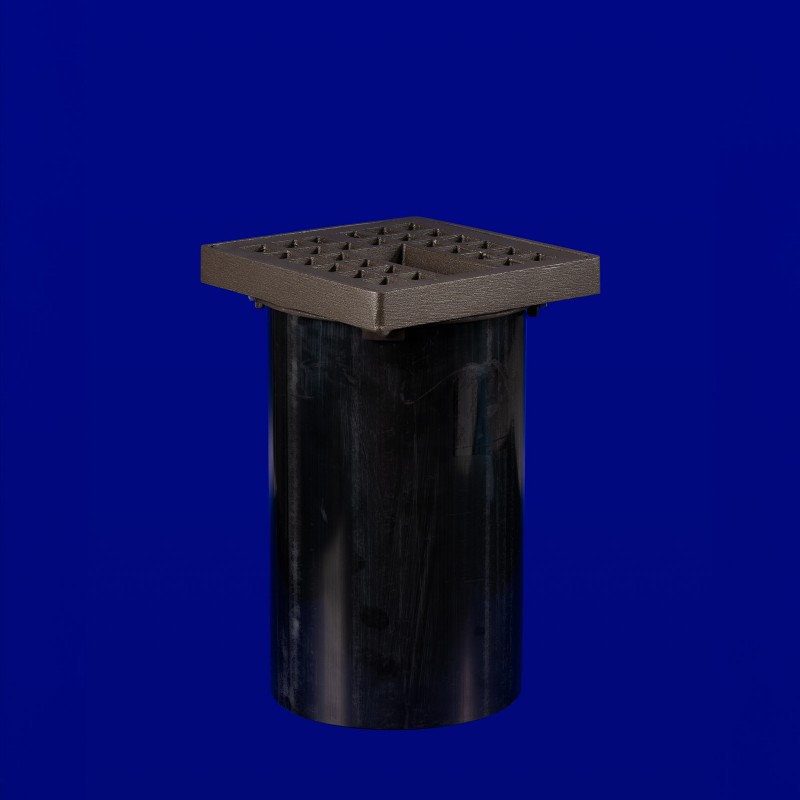

12V MR16 35W, 8W LED In Ground Well Light
12V MR16 35W, 8W LED In Ground Well Light
IN-5

IN-5

12V MR16 35W, 8W LED In Ground Well Light
UL Listed LED lighting products

12V MR16 35W, 8W LED In Ground Well Light

  • Bronze frame and grate.
  • Remote transformer required.
  • Hot-aiming option available.
  • Socket: GU5.3 Bi Pin Porcelain
  • Environment: Wet Listed
  • 18 degrees of aiming adjustment.
  • Machined aluminum lamp holder.
  • ABS housing: 6”dia. x 10 1/2” OAL.
  • Tempered glass lens.
  • Suitable for drive-over installations.
  • 6 feet of 16/2 low voltage cable supplied.
  • Maximum Wattage: 35 watt, 8 watt LED.
  • Input Voltage: 12V (remote transformer required)
  • Specification-grade well light, wet-location luminaire for up lighting applications.
More About IN-5
Technical InformationRelated Products

Technical Information

Input Voltage 12V (Remote Transformer Required)
Maximum Wattage 35 watt, 8 watt LED
Material Bronze
Lens Tempered Glass
Environment Wet Listed
Certifications UL Listed
Finish Options Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Dark Bronze, Natural, Silver, White
ABS housing 6”dia. x 10 1/2” OAL.
Socket GU5.3 Bi Pin Porcelain
Overall Dimensions 7 1/2" x 11 1/4"
Applications Up Lighting Applications
Fixture Regress 1 3/4" Regress, 3" Regress (standard), 4 1/4" (hot aim)
