DL-30
120V AC PAR20 35W, 11W Outdoor LED Down Light

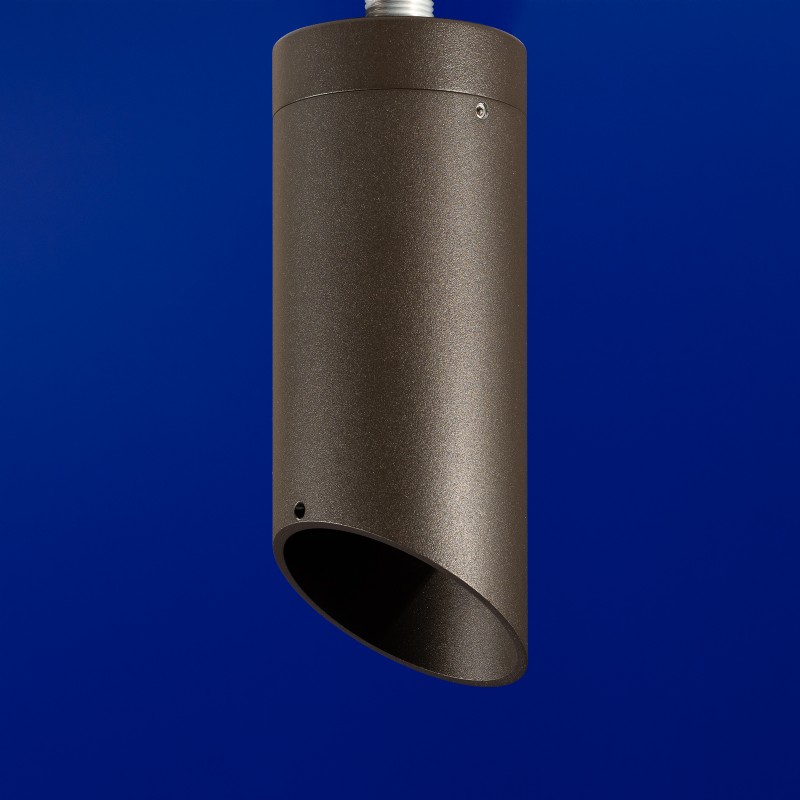

120V AC PAR20 35W, 11W Outdoor LED Down Light, 30° Angled Cap
- 6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
- Stainless steel hardware.
- 10” 18ga. Teflon coated wire leads.
- Clear tempered glass lens, glued in.
- Cap Style: 30° angled cap
- High-temperature silicone O-ring seal used to seal the cap against the body.
- Input Voltage: 120V AC
- Socket: Medium base ceramic.
- Environment: wet listed
- Specification-grade landscape lighting, wet-location luminaire for up lighting or down lighting applications.
Can be utilized for surface mounted installations.
More About
DL-30
Technical Information
| Input Voltage | 120V AC |
| Maximum Wattage | 35 watt, 11 watt LED |
| Material | 6061 Marine Grade Aluminum |
| Lens | Clear tempered glass lens |
| Environment | Wet Listed |
| Certifications | UL |
| Wiring | 10” 18ga. Teflon coated wire leads.. |
| Socket | Medium base ceramic |
| Finish Options | Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White |
| Mounting Plate Options | MT-24 MT-25 MT-26 MT-27 |
| Stem Length Options | No Stem, 3" 6" 9" 12" 18" |
| Dimensions | 3” dia. x 7 1/4” overall |
| Cap Style | 30° Angled Cap |
| Warranty | 5 Year Aluminum |
