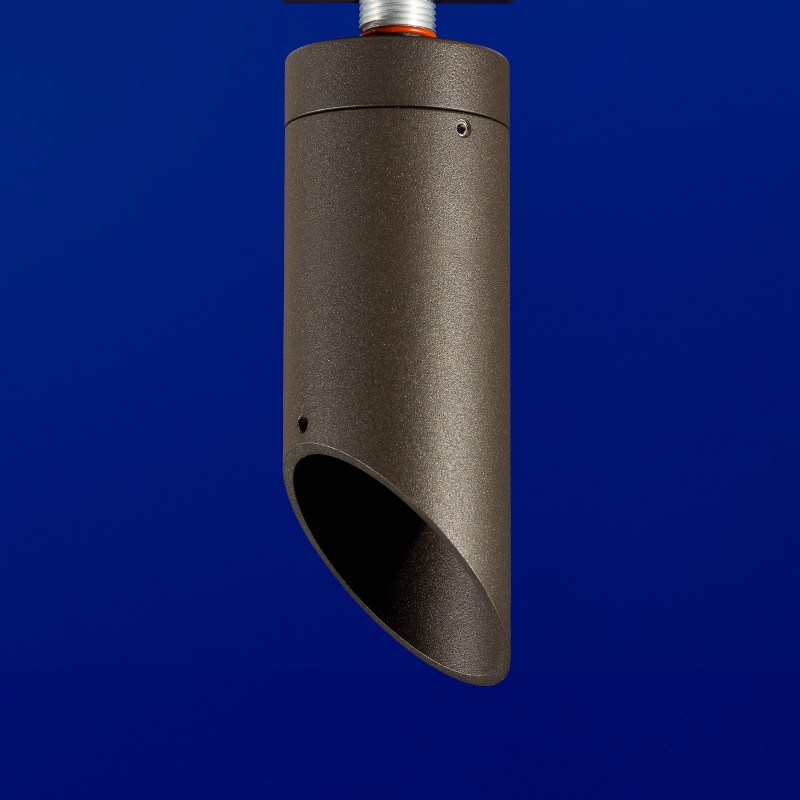

DL-12L

12V AC/DC MR16 9W LED Down Light

12V AC/DC MR16 9W LED Down Light, 45° Angled Cap

6061 Marine Grade Aluminum. Aluminum components are anodized, then a polyester powder coat finish is applied.
High-temperature silicone O-ring seal used to seal the cap against the body.
Molded silicone wire pass-thru attached to socket wire prevents wicking and water leaking into the lamp compartment.
Remote transformer required.
Not compatible with electronic transformers.
Stainless steel hardware.
10” 18ga. Teflon coated wire leads.
Tempered clear glass lens.
Cap Style: 45° angled cap
Input Voltage: 12V AC/DC
Socket: GU5.3 Bi Pin Porcelain
Environment: wet listed
Specification-grade landscape lighting, wet-location luminaire for up lighting or down lighting applications. Can be utilized for surface mounted installations.

Request Info Find a Rep

More About DL-12L

Input Voltage	12V AC/DC
Maximum Wattage	9 watt LED
Material	6061 Marine Grade Aluminum
Lens	15°, 30°, 45°, 60°
Certifications	UL
Wiring	10” 18ga. Teflon coated wire leads..
Socket	GU5.3 Bi Pin Porcelain
Finish Options	Beige, Black, Black Bronze, Black Texture, Bronze, Bronze Texture, Silver, White
Mounting Plate Options	4/0 Round Mounting Plate, 3/0 Round Mounting Plate, Surface MT-11, Surface MT-21
Stem Length Options	No Stem, 3" 6" 9" 12" 18"
Dimensions	2 3/8” dia. x 4 3/4” long
CCT	2700K, 3000K, 4000K
Cap Style	45° Angled Cap
Warranty	5 Year
